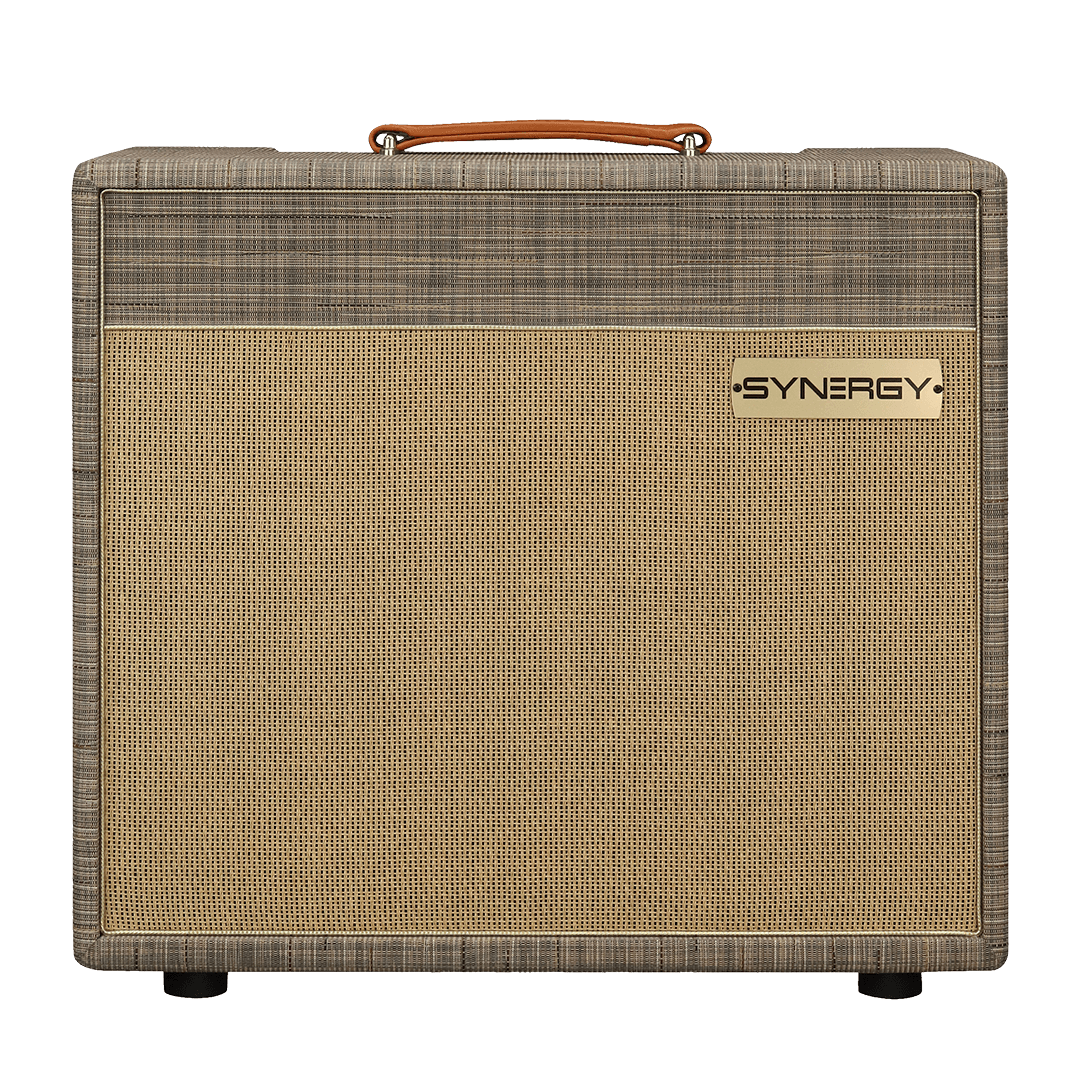

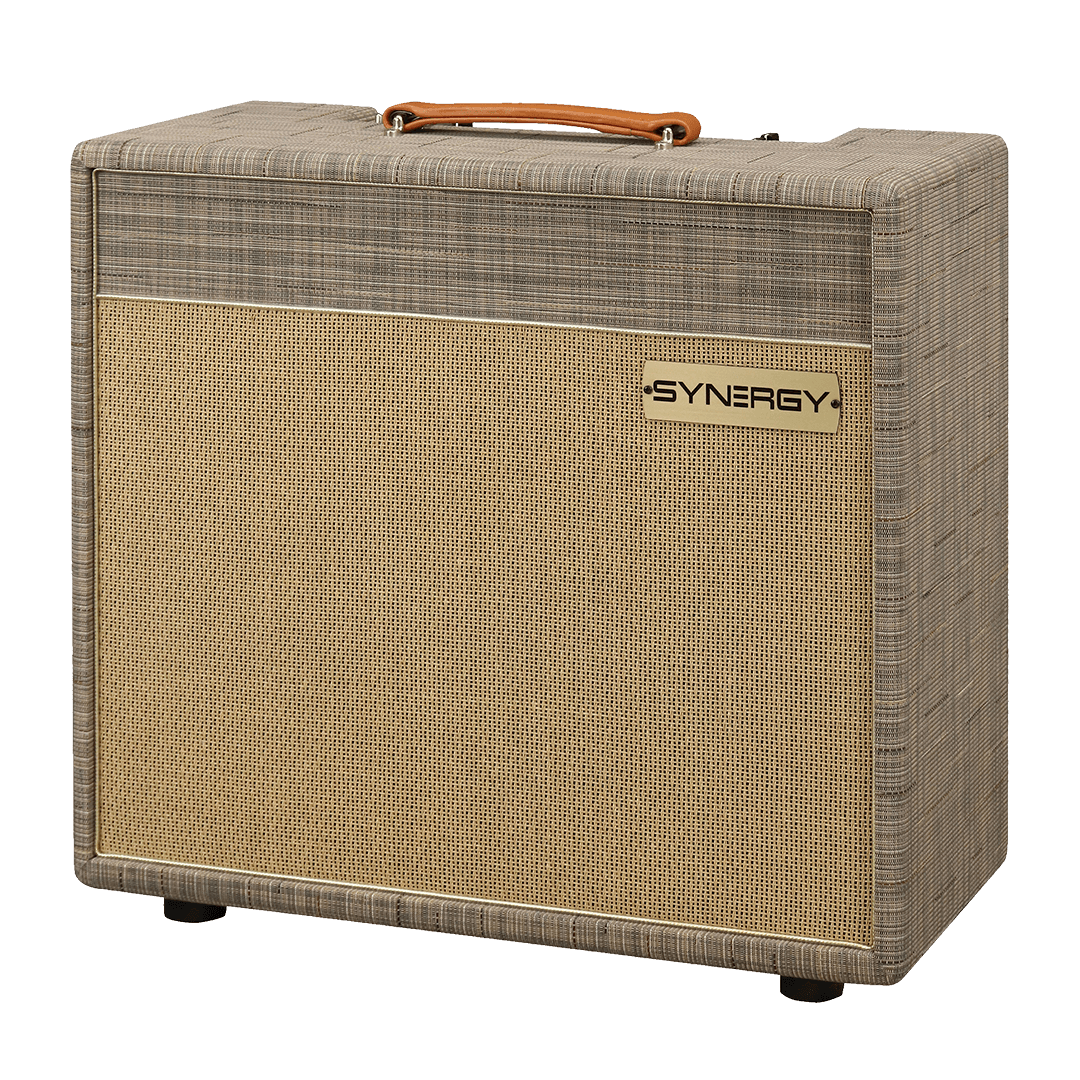

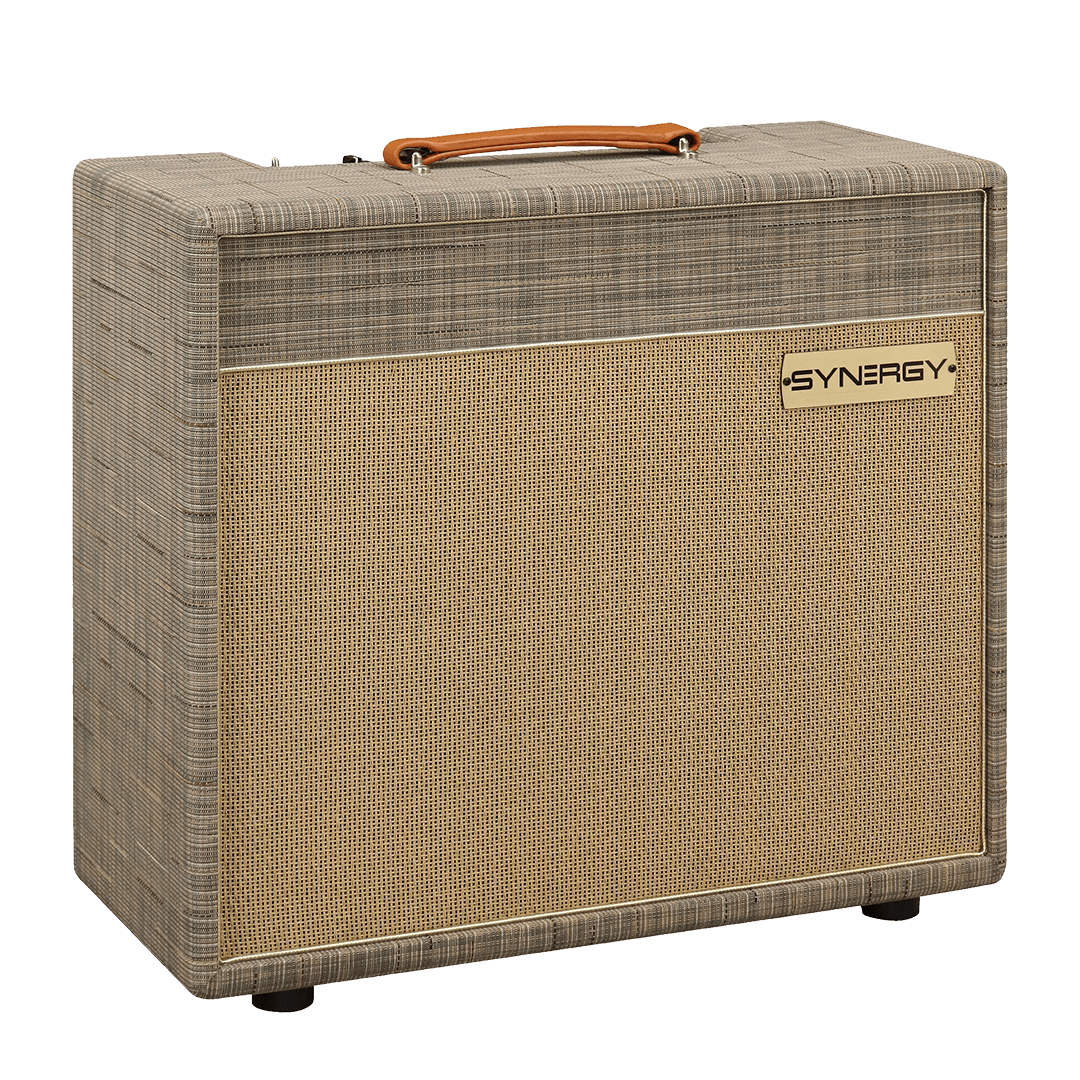

SYNERGY SYN-20IR 1×12” Combo Amp – Custom Shop Driftwood-Cane
$1,699.99
All-Tube – 20 Watt – 3-Channel – Preamp Module Platform 1×12” Combo Amp – IR Equipped
The SYN-20IR 1×12” Combo Amp utilizes Synergy’s patented all-tube modular system, allowing you to quickly and easily swap preamp modules to endlessly expand your tonal palette. The SYN-20IR 1×12” Combo Amp is the world’s most flexible, convenient, and tonally versatile all-tube amplifier head. The amp’s built-in vintage American-style clean channel coupled two additional channels from your favorite Synergy preamp module, makes the SYN-20IR 1×12” Combo Amp a three-channel tonal beast ideal for every player, every style, and every situation.
Each all-tube, two-channel module is equipped with dual 12AX7s and features the exact preamp circuitry as the legendary amplifier it is based on. In most cases the SYNERGY module offers more features in comparison to the amp itself. The Synergy engineering team painstakingly works with each brand partner to design modules that achieve the most accurate tonal representation of their famous amplifier model.
Custom Shop orders are built to order and are usually ready in 2–3 weeks.
MODULES BASED ON LEGENDARY AMP MODELS
Synergy offers an ever-growing list of all-tube modules based on legendary amp models which include everything from IIC+ crunch and AC-style chime to BMAN bloom and even Steve Vai’s signature leads. This allows the SYN-20IR 1×12” Combo Amp to offer unparalleled versatility and tonal exploration.
4
5
SYNERGY branded modules based on:
Dumble Overdrive Special, Fender Bassman, Fender Twin/Deluxe, Mesa Boogie Mark IIC+ & Dual Rectifier
Dumble Overdrive Special, Fender Bassman, Fender Twin/Deluxe, Mesa Boogie Mark IIC+ & Dual Rectifier
OFFICIALLY LICENSED MODULES:
BOGNER ECSTASY ● BOGNER UBERSCHALL ● DIEZEL VH4 ● DIEZEL HERBERT ● DR. Z – Z WRECK ● ENGL POWERBALL ● ENGL SAVAGE ● FORTIN KILLER KALI ● FRIEDMAN BE-DELUXE ● FRIEDMAN DIRTY SHIRTLY ● FRIEDMAN BE/BUXOM BETTY ● FRYETTE DELIVERANCE ● FRYETTE PITTBULL UL ● MARSHALL JMP ● MARSHALL JCM 800 ● MORGAN AC ● PEAVEY 6505 ● SOLDANO SLO II (SUPER LEAD OVERDRIVE) ● STEVE VAI SIGNATURE ● TONE KING IMPERIAL
Downloads:
Hear it in action:
Brought to life by a 20-watt EL84 power section, the SYN-20IR 1x12” Combo Amp is ideal for at home, in the studio, onstage, or at rehearsal. The SYN-20IR 1x12” Combo Amp is packed with features to satisfy today’s demanding players including onboard impulse response (IR) technology with latency less than 1ms, selectable Power Amp Structure, silent playing, XLR DI and Headphone outputs and fully MIDI capability.
NEXT-LEVEL POWER AMP CONTROL
The SYN-20IR 1×12” Combo Amp offers unique controls for STRUCTURE and REACTANCE that tailor the response of the amp’s all-analog power section. The revolutionary STRUCTURE feature optimizes the head for any channel by offering three distinct power amp configurations and feedback which are assignable to each of the amp’s channels. The STRUCTURE feature significantly alters the overall contour and feel of the SYN-20IR 1×12” COMBO AMP.
There are three Structure modes to choose from:
- Mode A: Balanced negative feedback for a clear yet punchy sound
- Mode B: Vintage style phase inverter with relaxed mids and a bright, shimmering high end.
- Mode C: Modern HiFi style phase inverter and low negative feedback resistor delivers a modern, tight feel with solid lows and a darker high end.
REACTANCE is similar to a presence knob, but with a dynamic response and variable phase inverter which simultaneously shapes the middle and treble frequencies. This powerful control helps tailor the sound to your chosen module and Structure setting.
3-BUTTON MIDI FOOTSWITCH – MIDI CONTROL
The SYN-20IR 1×12” Combo Amp includes an easy-to-use 3-button MIDI footswitch that lets you save and access any combination of channels, amp structures and onboard IRs. With the tap of your toe, you can, for example, switch from your module’s high-gain crunch with a 4×12 IR and Structure Mode C to the amp’s onboard clean channel through a vintage 1×12 IR and the open-sounding Structure Mode A.
You can also connect external MIDI switchers and controllers, giving you access to up to 128 user-created presets. The included Synergy Editor Software makes it easy to assign and organize your presets for maximum flexibility.

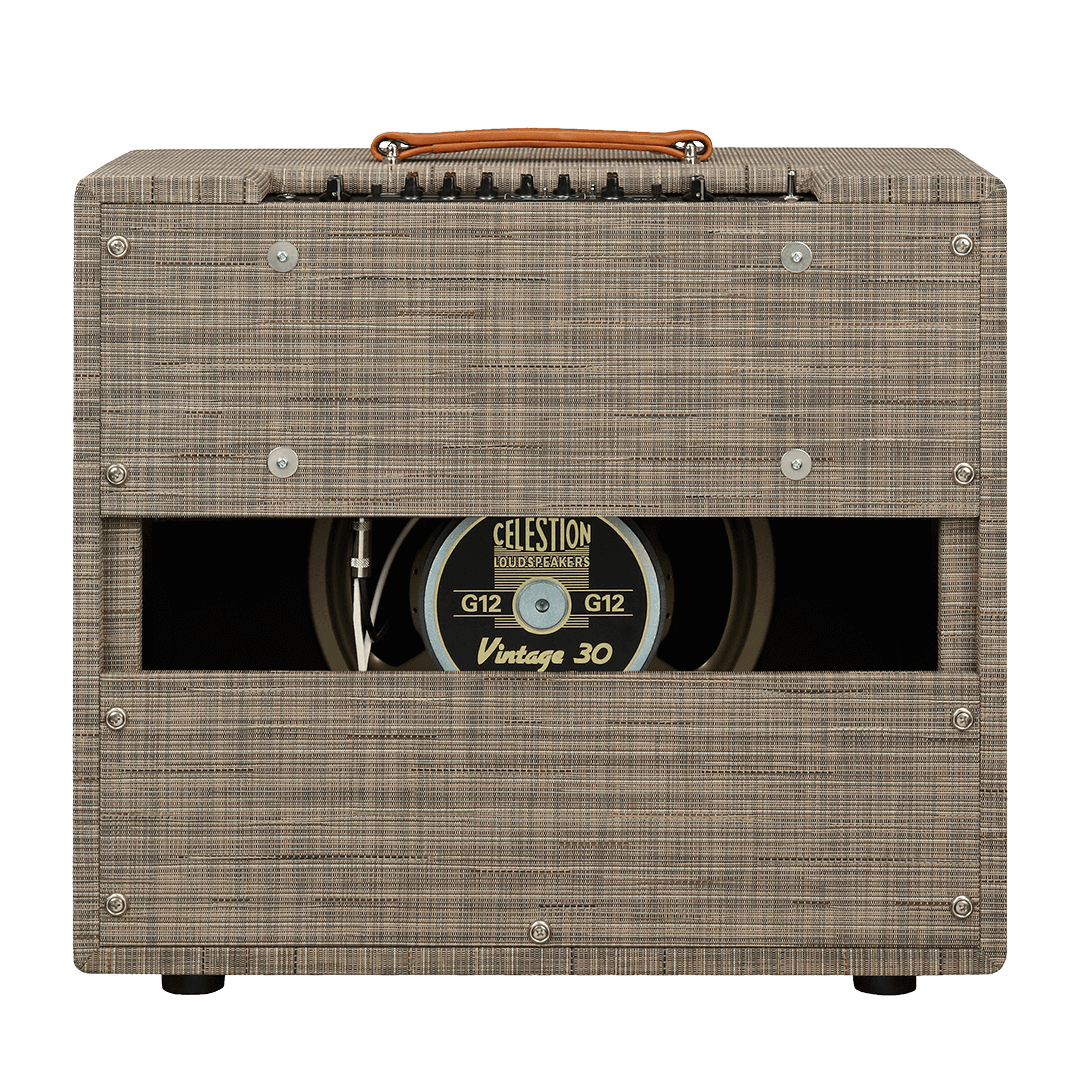

CELESTION VINTAGE-30 LOADED
Celestion’s Vintage 30 sits high among the world’s most revered electric guitar speakers. It’s vocal midrange, detailed top end, and tight lows makes it the ideal speaker for the SYN-20IR Combo amp.
INDUSTRY-LEADING IR TECHNOLOGY
The SYN-20IR 1×12” COMBO AMP boasts a powerful digital engine dedicated to its four onboard impulse responses (IR) and power amp simulation in the most accurate and natural-sounding way. Utilizing an oversized 500 MHz ARM DSP processor, it delivers these professionally captured IRs with under 1ms of latency, far surpassing competing products. Add and manage your own IR library, as well as the 13 included IRs, using the free Synergy Editor software.
SYNERGY EDITOR SOFTWARE
The included Synergy Editor Software unlocks the SYN-20IR 1×12” Combo Amp’s full potential. Connecting via a standard USB jack, you can easily assign different IRs and Structure settings for your amp and module channels, load and organize your IR library, save up to 128 MIDI presets, and tailor your power-amp simulation via the assignable Low-Pass and Low Pass filtering. It’s all available within the software’s streamlined and easy-to-use interface.
ASSIGN (POWER AMP) STRUCTURE and IR TO EACH CHANNEL

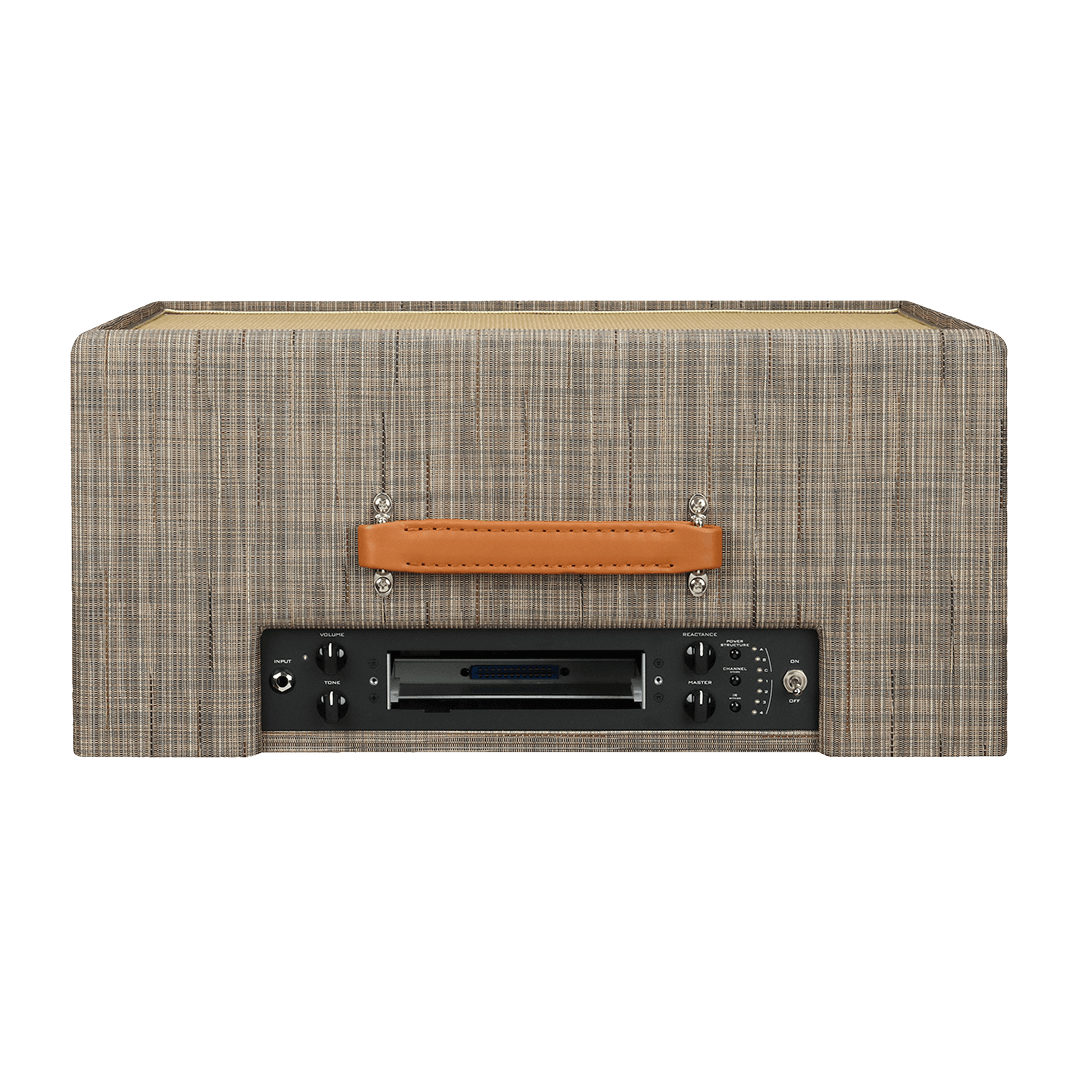

Right from the amp’s front panel, you can assign one of four impulse responses (IRs) and one of three POWER STRUCTURES to each of the three channels. Easily manage and save it all to the included 3-button MIDI footswitch.
SEAMLESS CAB-LESS OPERATION
The SYN-20IR 1×12” Combo Amp allows you to safely go front of house or to your recording device with unmatched response and realism without an external speaker cabinet. Superior to passive and reactive loads, whether running direct onstage, in the studio, or even utilizing the amp’s headphone output, you always get the perfect feel and sound with zero compromises.
UNIVERSAL VOLTAGE
The SYN-20IR 1×12” COMBO AMP works seamlessly anywhere in the world with the help of a voltage selector switch found on the back panel. When traveling or moving to a different country and want to take the SYN-20IR 1×12” Combo Amp with you, there is no need to re-bias the amp or use a step-up/step-down transformer – just select the right voltage, replace the Mains fuse with the correct rating and you’re ready to go!
THE PERFECT AMP FOR EVERY SITUATION
Finding the perfect balance at 20 watts, the EL84-powered SYN-20IR 1×12” Combo Amp is the working guitarist’s most valuable weapon. It’s designed for effortless portability while retaining rugged durability. The head’s compact size and light weight makes it easy to move between gigs, studios, or different rooms in your home. And the amp’s road worthy steel construction protects it to ensure consistent performance every time you plug in.
Features
- 20W 1×12” all-tube modular guitar amplifier
- Assembled in the USA
- Celestion Vintage-30 Loaded
- Tubes:
- 2 x EL84 Power Tubes
- 2 x 12AX7 Preamp Tubes (two additional 12AX7 in the module)
- Built-in clean channel based on vintage American tube Combo Amps
- Volume and Tone control
- Selectable Power Amp Structure Modes:
- Mode A: Balanced negative feedback for a clear yet punchy sound
- Mode B: Vintage style phase inverter with relaxed mids and a bright, shimmering high end.
- Mode C: Modern HiFi style phase inverter and low negative feedback delivers a modern, tight feel with solid lows and a darker high end.
- Master Volume control
- Reactance dynamic presence control
- Low-latency IR cabinet simulation (bypassable)
- 4 IR presets, individually programmable per channel
- Load your own IRs via the Software Editor
- Included 3-button programmable MIDI footswitch pedal
- 7-Pin MIDI Cable Included
- Ultra-transparent series FX loop
- XLR Balanced Output with Ground Lift
- Cab-less operation
- Headphone Output with dedicated VOLUME control
- MIDI programmable (up to 128 presets)
- MIDI/Footswitch Input
- 1×16 ohm, 2 x 8ohm (parallel) and 2×4 ohm (parallel) speaker connectors
- Synergy Software Editor
- Includes a 6’ USB Cable
- Solid Baltic Birch Construction
- Limited 5-Year Warranty
- Dimensions: 22” (W) x 10.25” (D) x 20.75” (H)
- Weight: 44.7 lbs.
