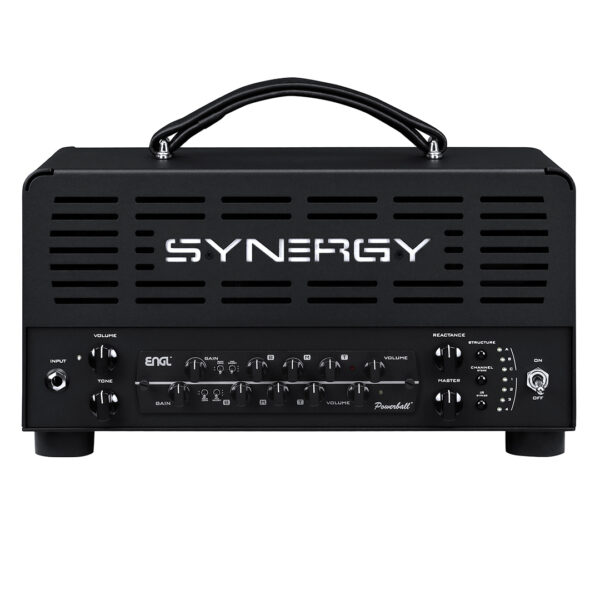

ENGL POWERBALL Preamp SYN-20IR Bundle
$1,399.98
The SYN-20IR utilizes Synergy’s patented all-tube modular system, allowing you to quickly and easily swap preamp modules to endlessly expand your tonal palette. The SYN-20IR is the world’s most flexible, convenient, and tonally versatile all-tube amplifier head. The amp’s built-in vintage American-style clean channel coupled two additional channels from your favorite Synergy preamp module, makes the SYN-20IR a three-channel tonal beast ideal for every player, every style, and every situation.
Engl amplifiers have a long legacy of well-loved, precise-sounding, high-gain amplifiers. So when they set out to make the most flexible amp for metal and hard rock, they had to beat their already incredible line up. They achieved it in the 4-channel Powerball. While displaying all the thick, powerful punch and crunch that the brand’s built their name on, the Powerball also allows metal players to find equally inspiring shades throughout the gain range. If players are looking for a great metal amp with a ton of options under the hood, the Powerball is the place to start.
Never ones to ignore a classic design, Synergy reached out to the Engl Amp designer of the Powerball head, Horst Langer to provide us with the amp’s signature swath of tones in an all-tube Synergy preamp module. The Synergy Powerball module boasts two of the amps four channels with enough control on tap to go toe to toe with the namesake head. Not only will you find the standard 3-band EQ, gain, and volume controls, but two Gain Lo/Hi and Mid Boost switches per channel put a world of these German-engineered tones at your fingertips.
All-Tube Head - 20 Watts - 3-Channel Preamp Module Platform Amp - IR Equipped
Each all-tube, two-channel module is equipped with dual 12AX7s and features the exact preamp circuitry as the legendary amplifier it is based on. In most cases the SYNERGY module offers more features in comparison to the amp itself. The Synergy engineering team painstakingly works with each brand partner to design modules that achieve the most accurate tonal representation of their famous amplifier model.
Brought to life by a 20-watt EL84 power section, the SYN-20IR is ideal for at home, in the studio, onstage, or at rehearsal. The SYN-20IR is packed with features to satisfy today’s demanding players including onboard impulse response (IR) technology with latency less than 1ms, selectable Power Amp Structure, silent playing, XLR DI and Headphone outputs and fully MIDI capability.
DUAL CHANNEL ALL-TUBE SYNERGY MODULE
By partnering with such iconic amplifier brand like Engl and the designers as Horst Langer, Synergy is able to offer you these sought after tones in all-tube designs that are perfect for the direct-recording, lower-stage-volume, and compact-guitar-rig demands of today. It’s easy to see why the Synergy preamp module system is taking the industry by storm.
Engl Powerball Preamp Module Features:
- All-tube preamp module custom-designed by Horst Langer and Engl Amplification
- Two channels offer switching between Overdrive and High Gain Distortion
- Blue: Channel 3 Powerball - Gain, Volume, 3-Band EQ, Gain & Mid Boost Switches
- Red: Channel 4 Powerball - Gain, Volume, 3-Band EQ, Gain & Mid Boost Switches
- 2 x 12AX7 preamp tubes ensure rich harmonic performance
- Easy to install and remove from Synergy preamp docks
- Dual/Single switch allows the module to be used with older Egnater and Randall hardware
- Three-position cathode select switch allows you to configure the input tube bias setting for
optimum input gain and bass response
CATHODE SELECT SWITCH:
The POWERBALL module features a three-position switch on the PCB which allows you to configure the input tube bass response to match the original circuit of the selected module. This will affect the feel and tightness. Each amp designer has a specific combination of components that makes up their input tube circuit. We have selected the three most popular combinations which you can access with this switch. The USA voiced modules typically use setting 1 (1.5K resistor and 22uf capacitor). British style modules use position 2 (2.7K resistor and .68uf capacitor). The POWERBALL – same as SOLDANO & VAI module, uses position 3 (1.8K resistor and 1uf capacitor). Of course, you can experiment and try any of the positions to see what you prefer. The modules will come preset to the designers preferred setting which for the POWERBALL module is position 3 (1.8K resistor and 1uf capacitor).
DUAL<>SINGLE SLIDE SWITCH:
The POWERBALL module features a secondary switch allowing the new Synergy modules to be used in older single channel Egnater and Randall modular amps/preamps that do not accept the dual channel modules. This allows access to either of the module channels when that slot is turned on. You will still not be able to switch between the two channels due to the limitations of the older hardware. You can set it so either module channel one or module channel two will turn on when the slot is selected. Set to Dual when using the module in units that have the switching circuit to access both modules. If you are using a single channel only amp/preamp, setting to DUAL will make the bottom module channel active. Set to Single will cause the top channel of the module to come on when selected.
Synergy hardware and interchangeable pre-amps are protected under US patent.
Technical
Technical Details
- 2 Preamp channel – Interchangeable design
- Gain, Bass, Mid, Treble, Volume controls
- Two 12AX7 preamp tubes
- Dimensions: 5.5″(L) x 7″(W) x 1.5″(H)
- Weight: 1 lbs.
For technical details and more on the SYN-20IR, click here.
